We'll provide you an extra bolt to be used for mounting the 'clamp' behind the tip over bar so you need not be as concerned
about dropping the clamp while trying to get the mounting bolts in place.

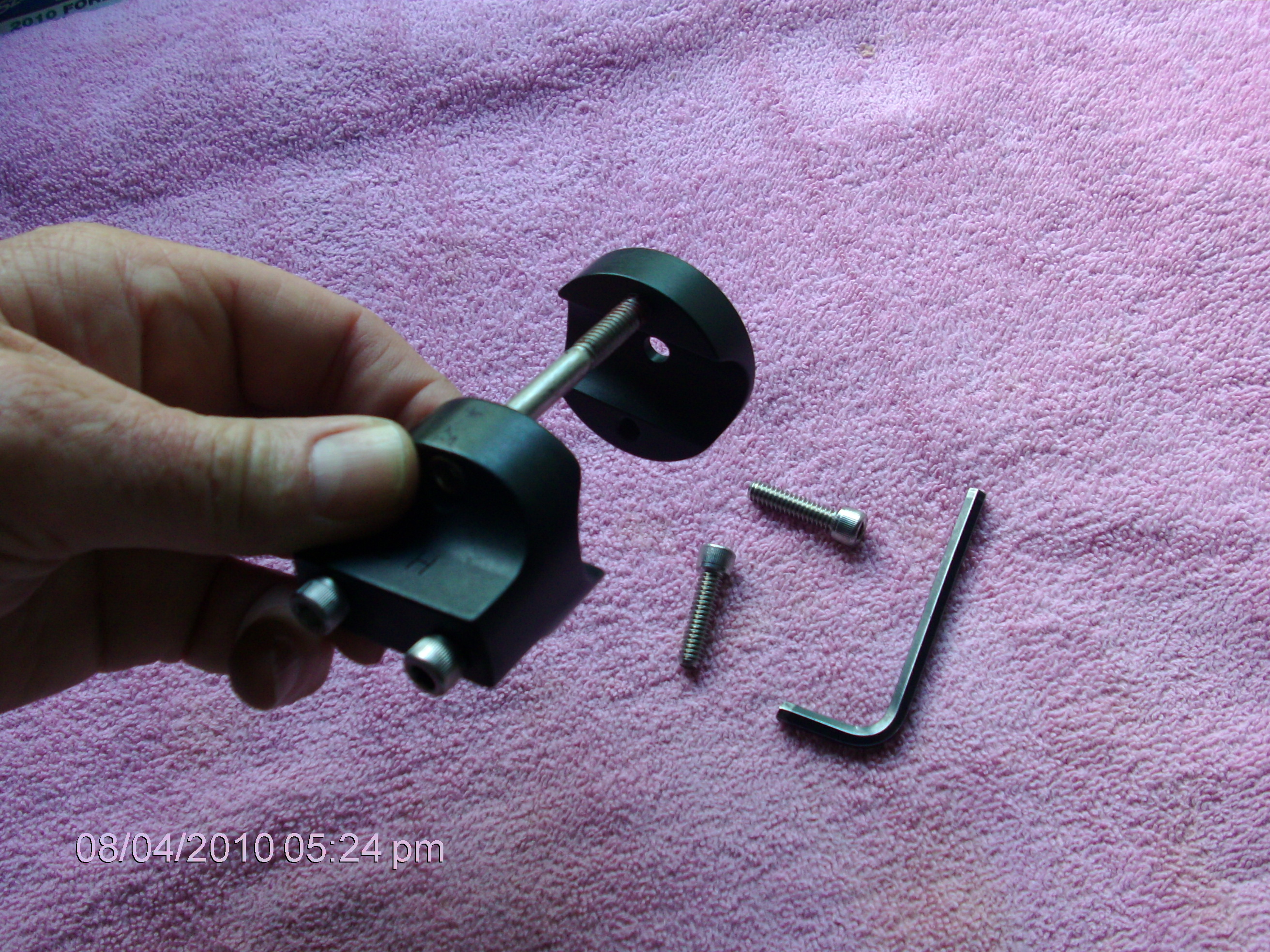

You'll begin mounting Model S13 by putting
the extra bolt through the top hole of the 'standoff' part and screwing it into one tapped hole in the 'clamp'. The Standoff
looks like a knob on an old stove. The clamp will fit behind the tip over bar. The extra bolt is long and allows you to
slide the standoff away from the clamp so they will fit over your tip over bar. Once in place you can install the first mounting
bolt through the bottom holes (under your tip over bar). Then you'll remove the longer extra bolt and install your second

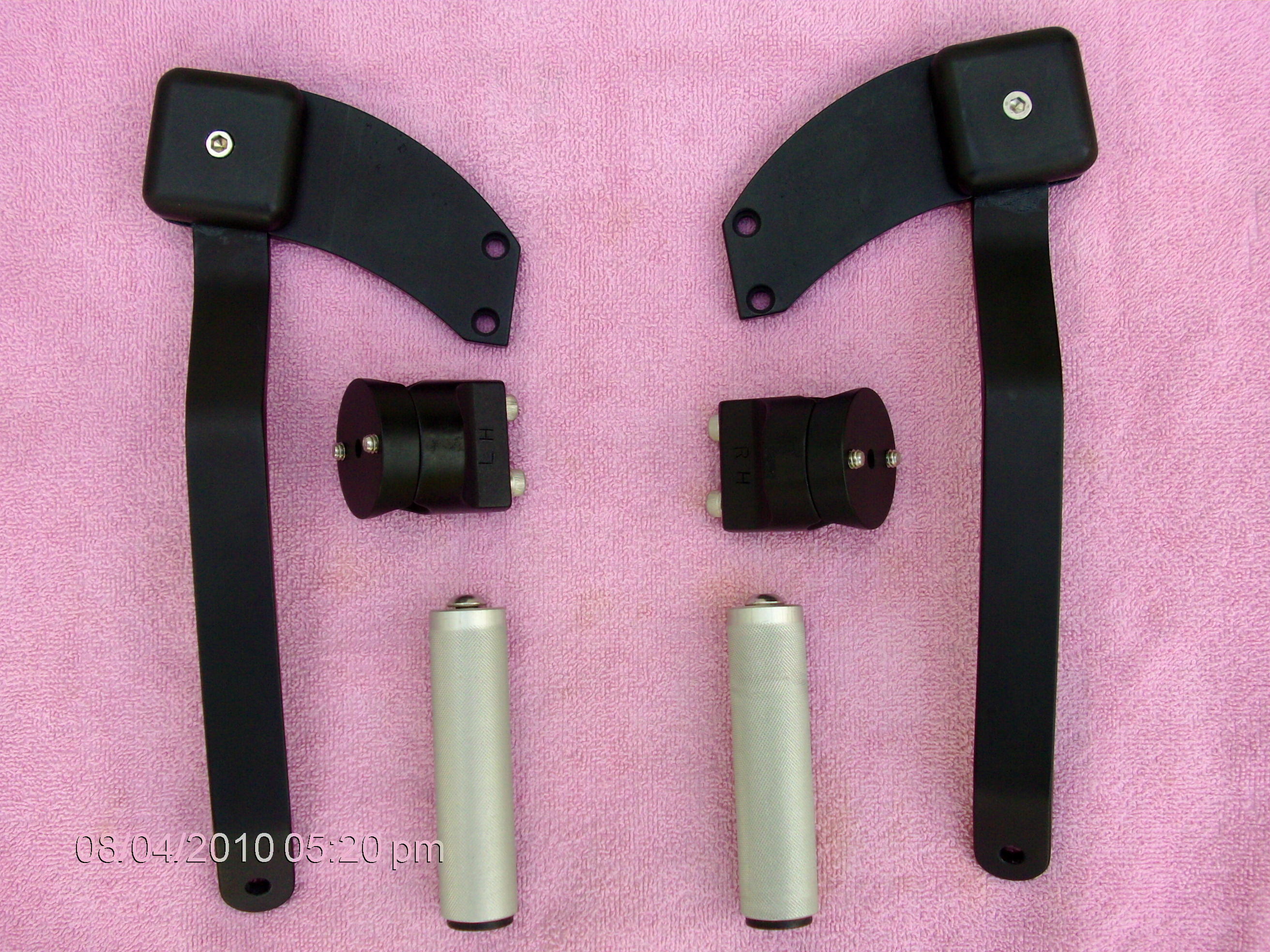

mounting bolt. The next two mounting bolts will attach the 'bracket' to the standoff.

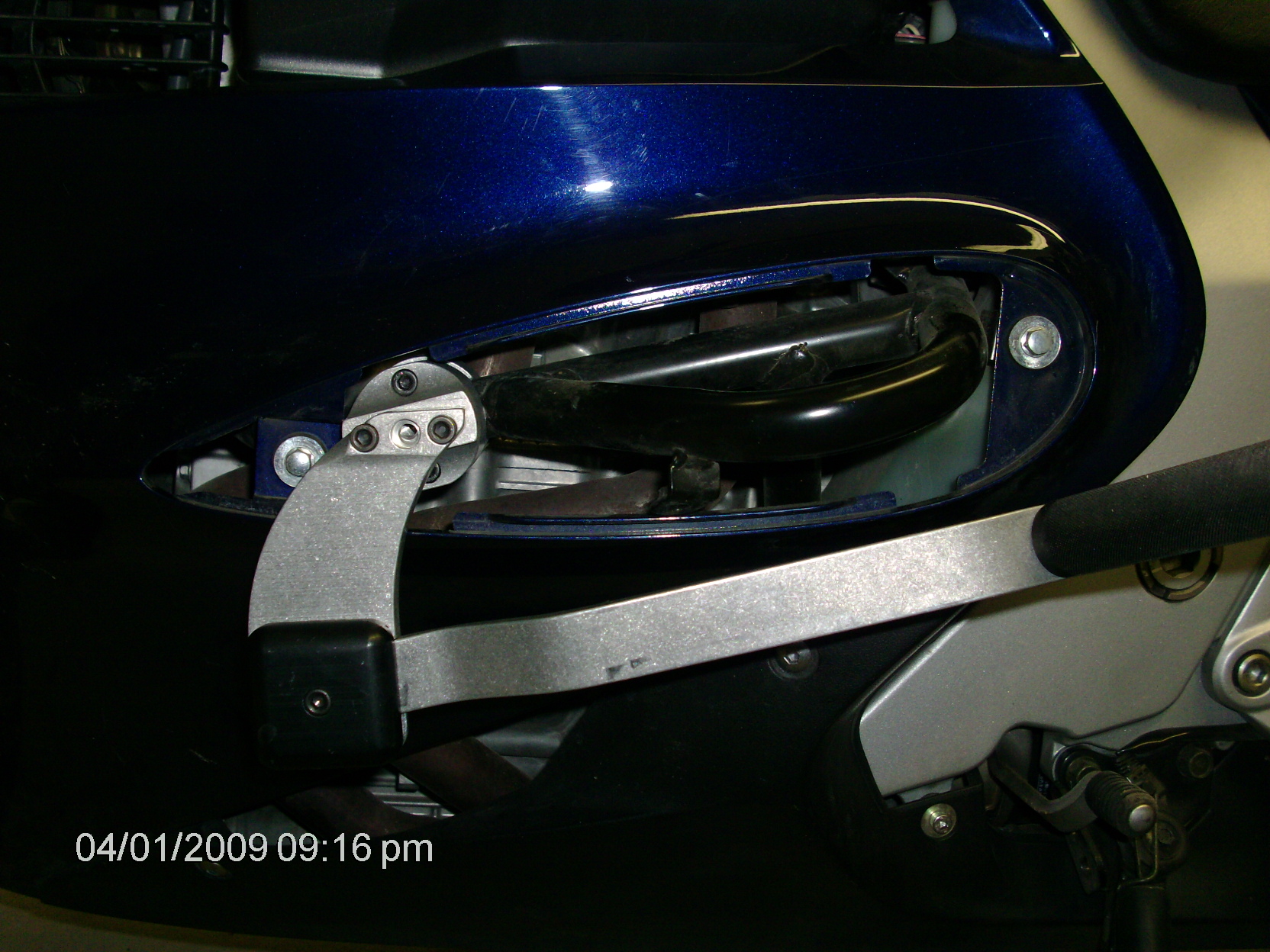

Once you get the mounting location comfortable and symmetrical, you'll need to cut a small notch in the bottom of the
plastic that covers your tip over bars. That notch will make room for the 'bracket'.
You'll notice an "end mill"
groove along the back of the bracket, just above the top of the 'cover'. If your bike falls, the bottom edge of our cover
will touch before the tip over bar touches to support the weight of your bike. The design allows the Mick-O-Peg bracket to
fold in to protect your fairing.
Here's where we need help from customers who are among the first to drop their
bike: If you'll provide us with information and pictures about what happened when you drop your bike, we'll provide free
Mick-O-Peg replacement parts.
|
